Project Description

Underwater PTZ Camera

UPTZ Nuclear Applications
• General underwater overview
• Refueling
• Fuel identification
• Diver Safety
• Cask Loading

Underwater PTZ Camera Cam-Lock Pole

1″ Cam-Lock Connection Shown

Pelican Protector Case for Camera System

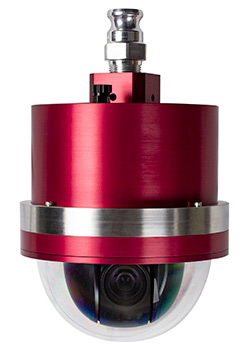

Underwater Pan – Tilt – Zoom HD Network Camera

Affordable, high spec underwater camera system provides single cable, HD 1080p resolution, and Power-Over-Ethernet in a simple and robust camera system – Save time and money

UPTZ’s features set it apart

• Reduces equipment to transport and store
Entire camera system fits in one wheeled storage case (camera, 100’ cable, topside cable adapter)
• Reduces field setup time
Less time to start the work evolution
Less dose
One cable, one connection to a POE switch
Multiple viewing, control and recording methods – Omnicast / Security Center / Milestone or Stand-Alone
• See farther and better
True HD 1080p resolution
40x optical zoom
Camera can be positioned away from high dose areas
• Power-over-ethernet
Budget friendly underwater cable
No high voltage
• Modular design
Camera and PTZ unit can be replaced with basic hand tools
• Robust
Aluminum, stainless steel and hard coated polycarbonate used throughout
• Mounting Options
Industry standard cam-lock mount fits existing poles with 1” cam-lock
Suspended cable mount
Custom mounts designed for application

Specifications

Model Number V100479
Optical/Image Sensor
Resolution 1080p HD
Optical Zoom 40x
Minimum Illumination Color .015 lx. BW .006 lx
Electrical
Power POE 48 VDC 12w
Connections
Camera Underwater cable, SS connector, 100′ standard
Topside Environmental RJ45
Pan and Tilt
Pan Range 360 degrees infinite
Tilt Range -25 degrees to 205 degrees
Physical
Weight In air: 16 lbs. | In water: 2 lbs.
Width 8.4″ Diameter
Height 13.5″ w/cam-lock connector
Depth Rating 100 feet
Control/Viewing Genetec Security Center, Milstone, Panasonic i-VMD, Onvif
