KEY FEATURES
• Robust aluminum housing
• Power-Over-Ethernet
• Integrated white LED lights
• 28x Optical Zoom
• 360° Pan and –20° to +90° Tilt
• All Stainless Steel Hardware
• IP-66
• V3I Modular Mount System
• Compatible with most NVMS
BENEFITS
• V3I modular mount installs in seconds
• Powerful Zoom
• Lighter and smaller than competitors cameras
• Built-In LED lighting
• 1 year warranty

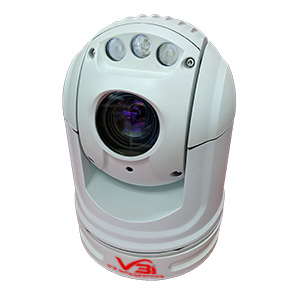

Power-Over-Ethernet PTZ Camera with Lights
The IPTZ or Industrial Pan, Tilt, Zoom Camera from V3I is a lightweight , compact and robust Internet Protocol camera, featuring Power-Over-Ethernet.
The IPTZ is designed for use in industrial or harsh environments, with an IP-66 rated housing constructed of powder coated aluminum. A height of 11.5” and diameter of 5.75” with a weight of 6.5 pounds makes the IPTZ compact, but don’t be fooled by its diminutive size. The IPTZ packs a punch with white LED lights (flood and spot), 28X optical zoom, varia-ble speed pan and tilt and of course Power-Over-Ethernet.
The Modular Camera Mount (X-MCM) system allows the operator to install any of our camera mounts quickly and efficiently.
Specifications
| Model Number | IPTZ-IP-POE |
| Supported Video Codec | H.264/MJPEG |
| Resolution | 550 Lines, NTSC |
| Image Sensor | 1/4 Super HAD CCD II |
| Focus Mode | Auto, Manual |
| Pan Range | Continuous |
| Tilt Range | -20—90° |
| PT Speed | Variable, Proportional |
| Optical Zoom | 28X |
| Lighting | White LED (2 flood, 1 spot) 50’ range |
| Temperature | 120°F |
| Power | PoE + (802.3at) |
| Control Mode | IP, ONVIF, Genetec, Milestone, etc. |
| Dimensions | 6” wide x 11.5” tall |
| Weight | 6.5 lbs (w/o mount) |
| Housing Material | Aluminum |
Optional Camera Mounts
Magnetic Modular Mount
200 lb. Holding Power360 Swivel Head
Safety Lanyard
Clamp Style Modular Mount
1.5″- 2″ Dia. Pipe Clamp360 Swivel Head
Safety Lanyard
Plate Camera Mount
Pelco Hole Patternand
Vicon Hole Pattern
